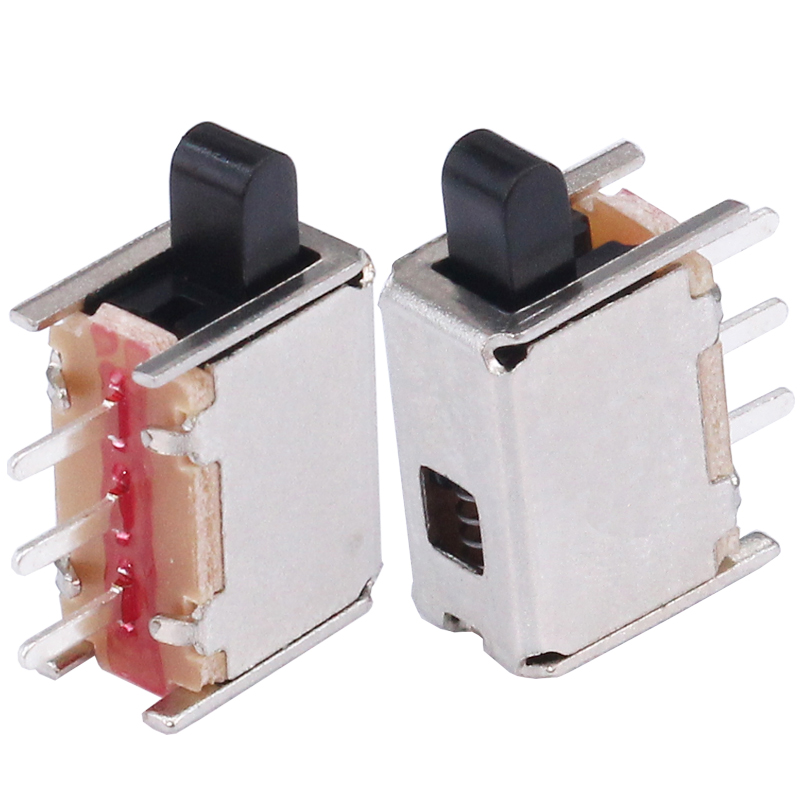

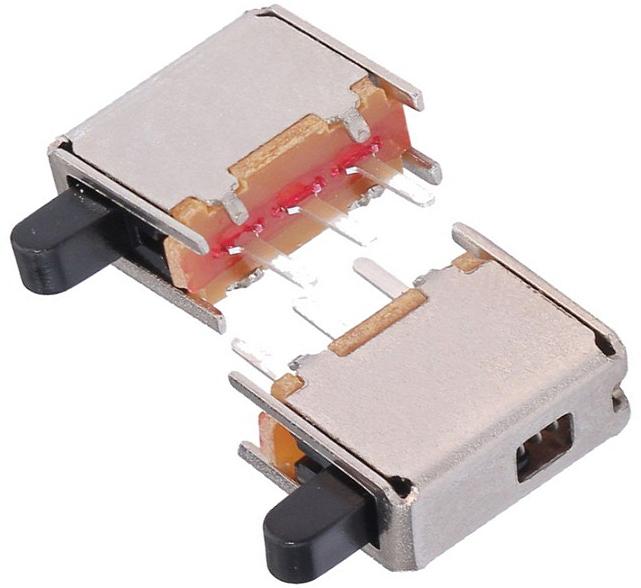

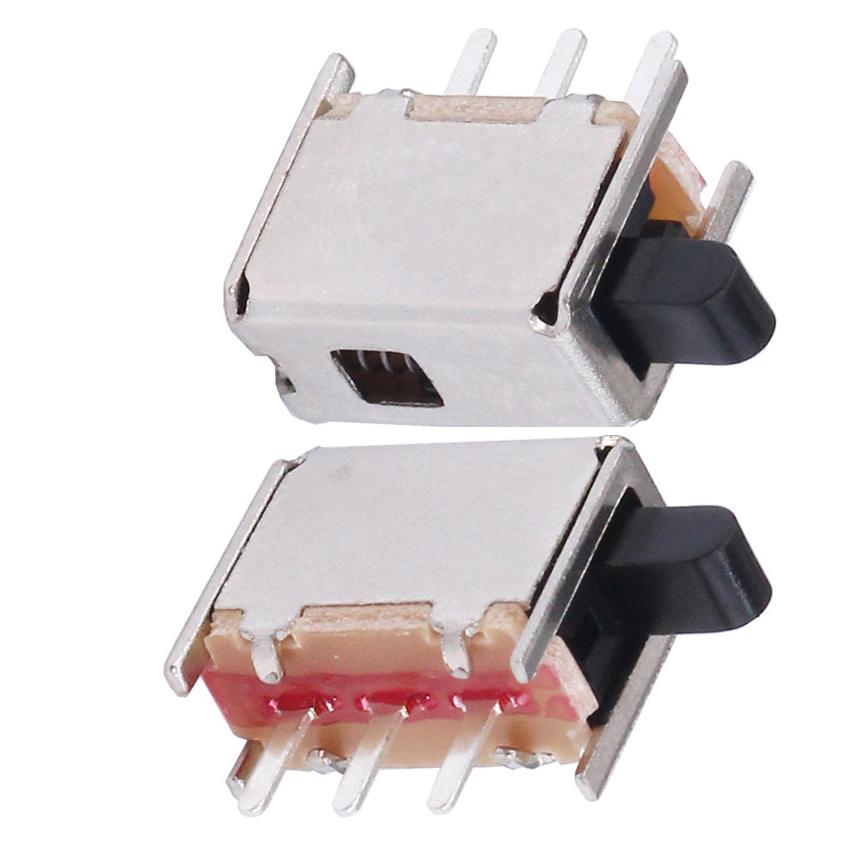

KS11-PS-12E004

产品详情

请点击此网站上的“联系我们”联系销售人员
请点击此网站上的“联系我们”联系销售人员



复位按钮开关 /复位按键开关 /复位检测开关技术指标
1.定负荷: DC 12V 30V  0.3A  0.5A
2. 接触阻抗: ≤50mΩ
3. 绝缘阻抗: ≥100mΩ DC500V
3. 耐焊温度: 250±5°5s
5. 使用寿命: 10,000 cycles
6. 使用温度: -25 ℃ to 80 ℃
7. 使用湿度: ≤85% RH
7. 操作力 : 160gf  可订做
9.功能电路:复位常开/复位常闭
10.品牌:科斯达  KSDKG
11.应用:汽车电器、工控设备、数码产品、安防、电脑、通讯产品、家用电器、智能交通等。

Reset Puhs Button Switch/Reset Button Switch/DetecTion Switch

1. Constant load: DC 12V 30V 0.3A 0.5A
2. Contact impedance: ≤50mΩ
3. Insulation resistance: ≥100mΩ DC500V
3. Soldering resistance temperature: 250±5°5s
5. Service life: 10,000 cycles
6. Operating temperature: -25 ℃ to 80 ℃
7. Operating humidity: ≤85% RH
7. Operating force: 160gf can be customized
9. Functional circuit: reset normally open/reset normally closed
10. Brand: Kosod Switch  KSDKG
11. Application: automotive electrical appliances, industrial control equipment, digital products, security, computers, communication products, household appliances, intelligent transportation, etc.
