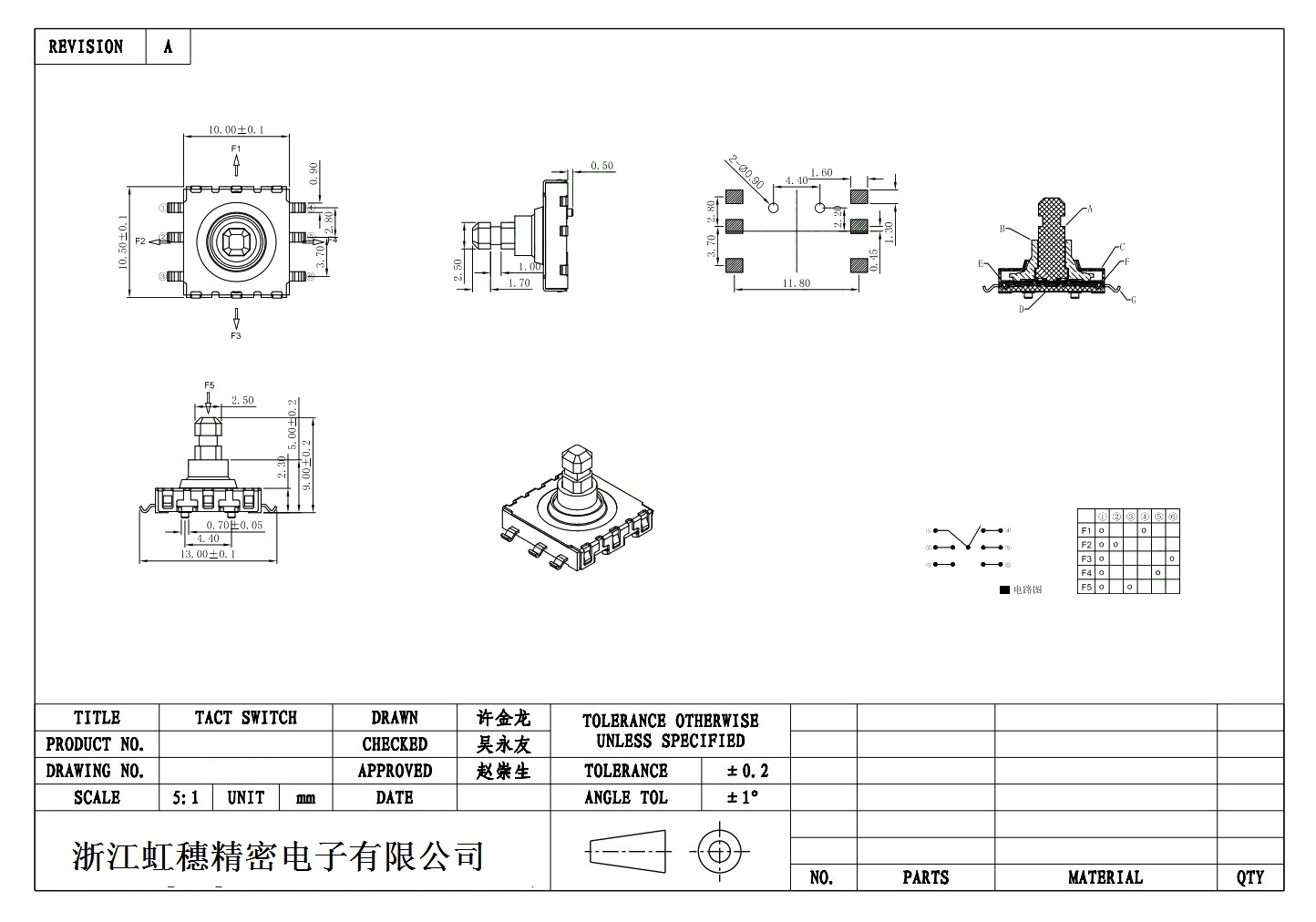

TM-03

多功能五向开关  轻触五向开关技术参数：

1. 额定负荷: DC 12V 100mA

2. 接触阻抗: ≤100mΩMAX

3. 绝缘阻抗: ≥100MΩMIN

4. 耐焊温度: 250±5°5s

5. 使用寿命: 200,000 cycles

6. 使用温度: -25 ℃ to 85 ℃

7. 使用湿度: ≤85% RH

8. 操作力: 250/350/450 ± 35 gf

9.品牌 科斯达  KOSOD  KSDKG

MultiFunctional Five-way Switch Light Tact Five-way Switch technical parameters:

1. Rated load: DC 12V 100mA

2. Contact resistance: ≤100mΩMAX

3. Insulation resistance: ≥100MΩMIN

4. Solder resistance temperature: 250±5°5s

5. Service life: 200,000 cycles

6. Operating temperature: -25 ℃ to 85 ℃

7. Operating humidity: ≤85% RH

8. Operating force: 250/350/450 ± 35 gf

9. Brand KOSOD KSDKG
