M3-2

产品详情

请点击此网站上的“联系我们”联系销售人员
请点击此网站上的“联系我们”联系销售人员

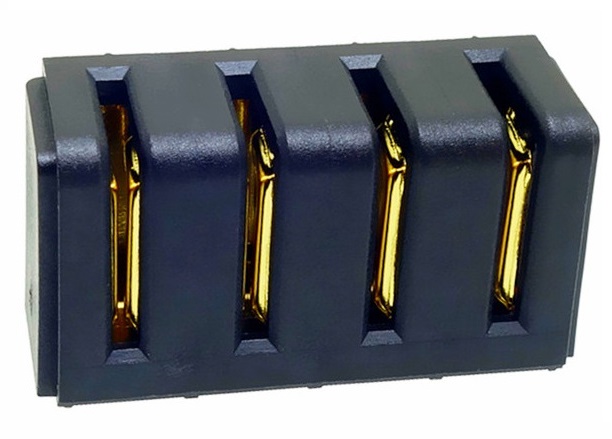

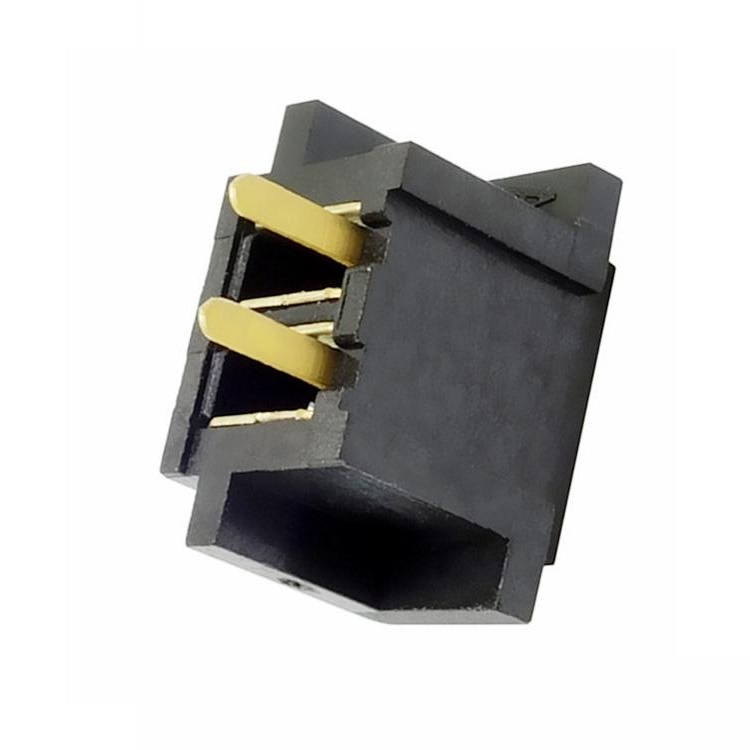

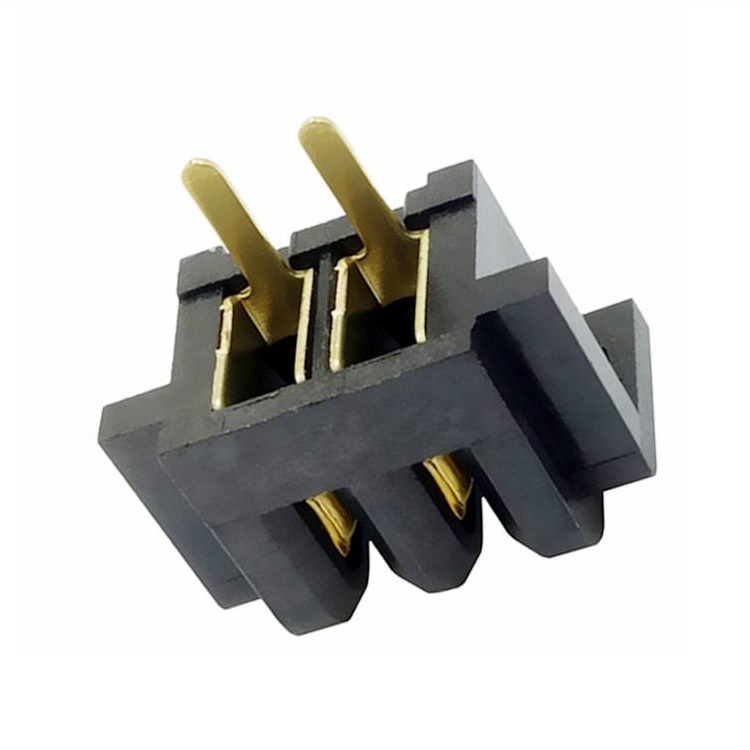

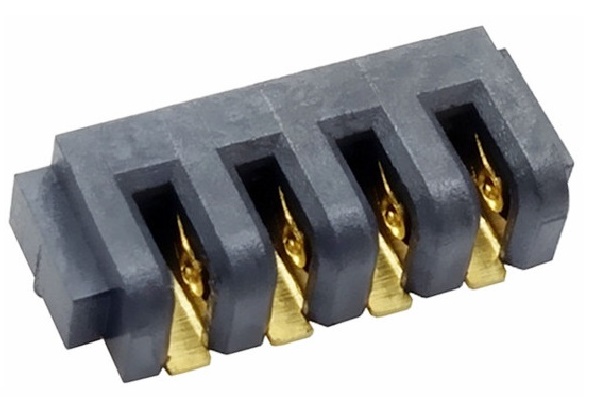

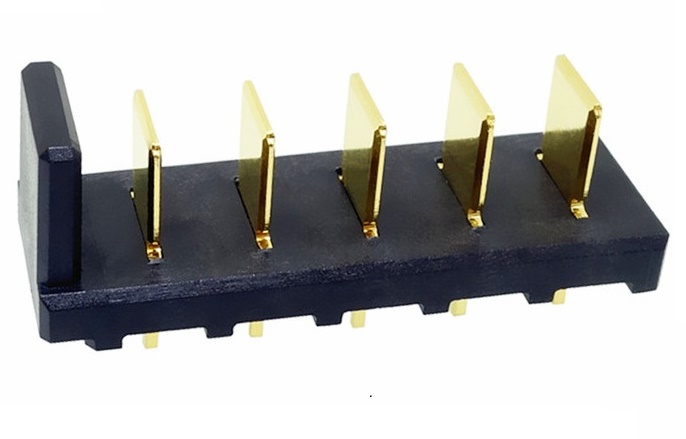

产品名称:电池座  电池连接器  笔记本电池座 电池插座

  牌:科斯达  KSDKG / KOSOD SWITCH

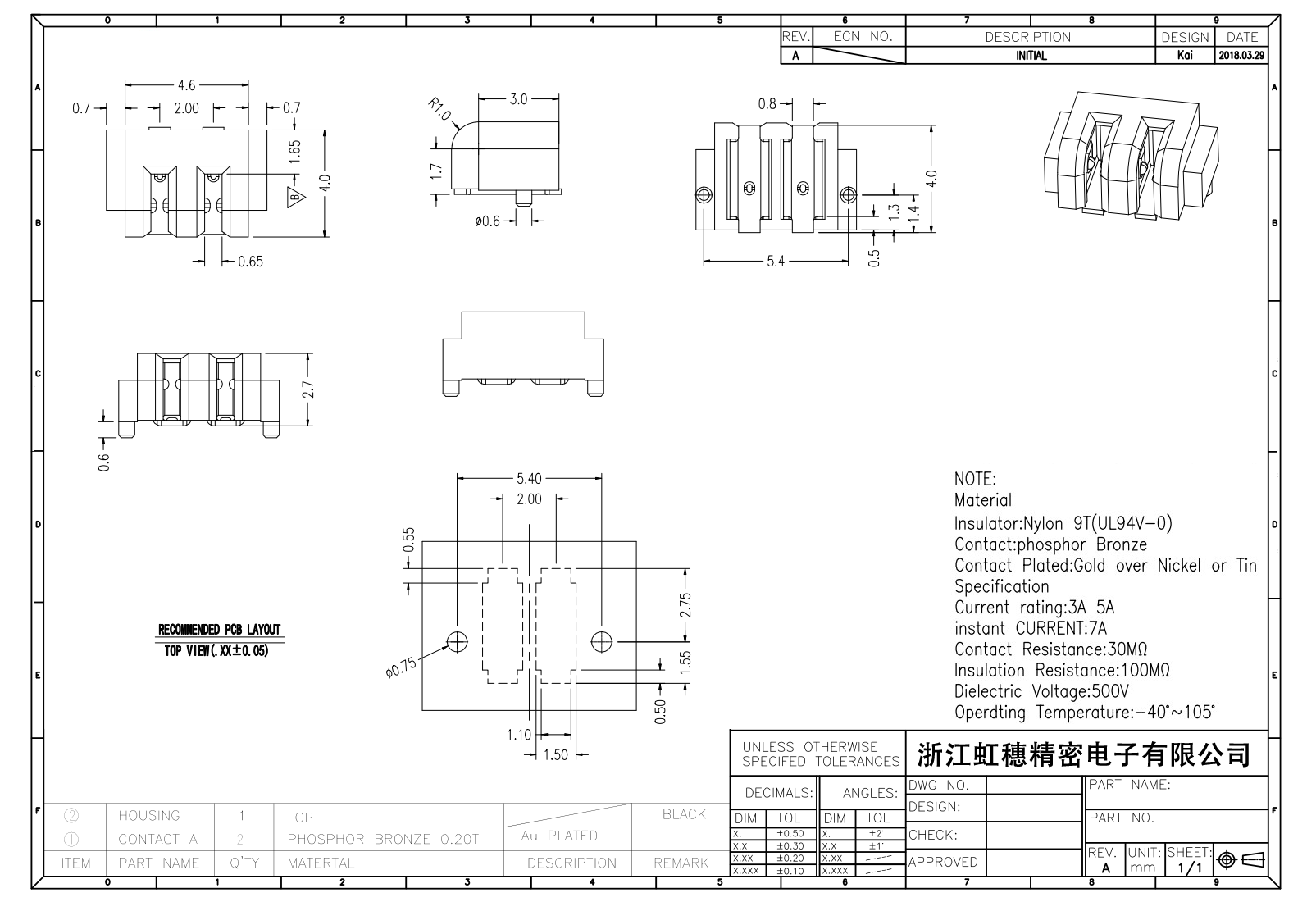

电池连接器产品参数:

电池连接器PIN数:2Pin-14pin

绝缘主体:Nylon 6T/9TUL94V-0

五金导体:磷铜C5191

表面镀层:金在镍/锡之上,镀层厚度3U

绝缘电阻:100MΩ Min

接触电阻:30mΩ Max

额定电流:3A 5A 7A/PIN

瞬间电流:7A/PIN - 10A/PIN

额定电压:12V  24V DC

工作温度:-30~105

耐电 压:500V /1000V

耐高 温:260/5S

盐雾试验:48H

工作寿命:5000cycles

适用范围:工控设备电脑笔记本、计算机设备、汽车工业、小家电吸尘器、无人机、智能锁、行车记录仪、数码相机及各类锂电池保护板。



Product name: battery jack, batteryconnector, laptop battery holder, battery socket, battery interface

Brand: KSDKG / KOSOD SWITCH

Battery connector product parameters:

Battery connector PIN number: 2Pin-14pin

Insulation main body: Nylon 6T/9T (UL94V-0)

Hardware conductor: phosphor copper C5191

Surface coating: gold on top of nickel/tin,the thickness of the coating is 3U

Insulation resistance: 100MΩ Min

Contact resistance: 30mΩ Max

Rated current: 3A 5A 7A/PIN

Instantaneous current: 7A/PIN-10A/PIN

Rated voltage: 12V 24V DC

Working temperature: -30~105

Withstand voltage: 500V / 1000V

High temperature resistance: 260/5S

Salt spray test: 48H

Working life: 5000cycles

Scope of application: industrial controlequipment, computer notebooks, computer equipment, automotive industry, smallhousehold appliances, vacuum cleaners, drones, smart locks, driving recorders,digital cameras and various lithium battery protection boards.
