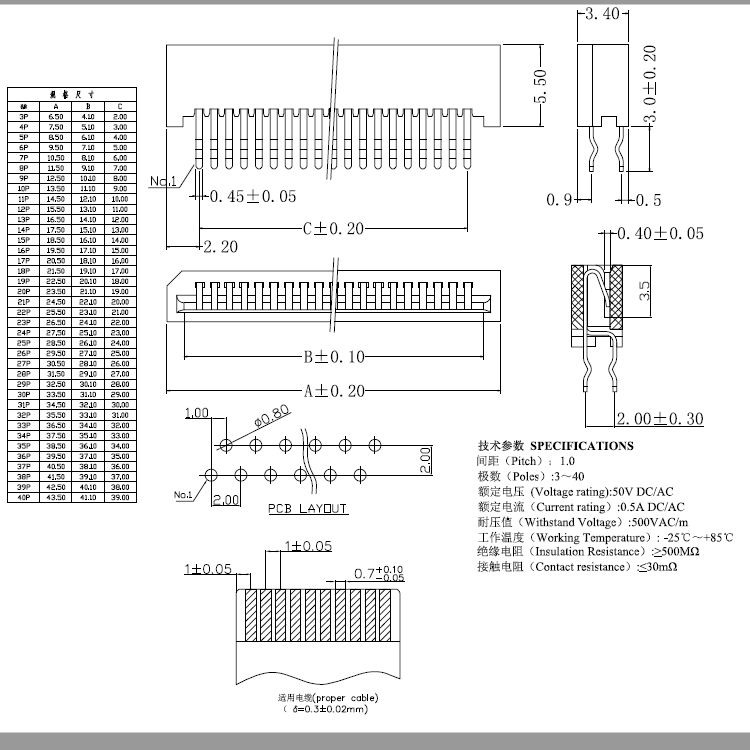

1.0pitch 双排正脚立插单面接触H=3.4
技术参数:
1.额定电压、电流:50V DC/AC 2.接触电阻:≤30mΩ
3.绝缘电阻:500MΩ Min 4.耐压值 :500V
5.回流焊温度:250℃ Max 6.使用温度:-25℃~+85℃
应用:数码产品、音响、电脑、通讯产品等。
FPC050LX-nPL-20BP
FPC050HDL1LX-nP
FPC050ALX-nPHSL20
PINP125LX-nP
FPC100HA1LX-nP2-30N
FPC050LX-nPL-20QP
PINP125DLX-nPU
PINP350NLX-2PW
