USB-TYPE-C-033

品名：Type c USB插座TYPE C连接器

USB Type C母座技术参数：

1.额定负荷: DC 30V 60V  1A  3A

2.接触电阻: ≤50mΩ

3.绝缘阻抗: ≥100mΩ DC250V

4.耐焊温度: 250℃＋5℃

5.使用湿度: ≤85%RH

6.插拔寿命:10,000 Cycles

7.插拔力:2-20N

8.品牌 科斯达  KOSOD  KSDKG

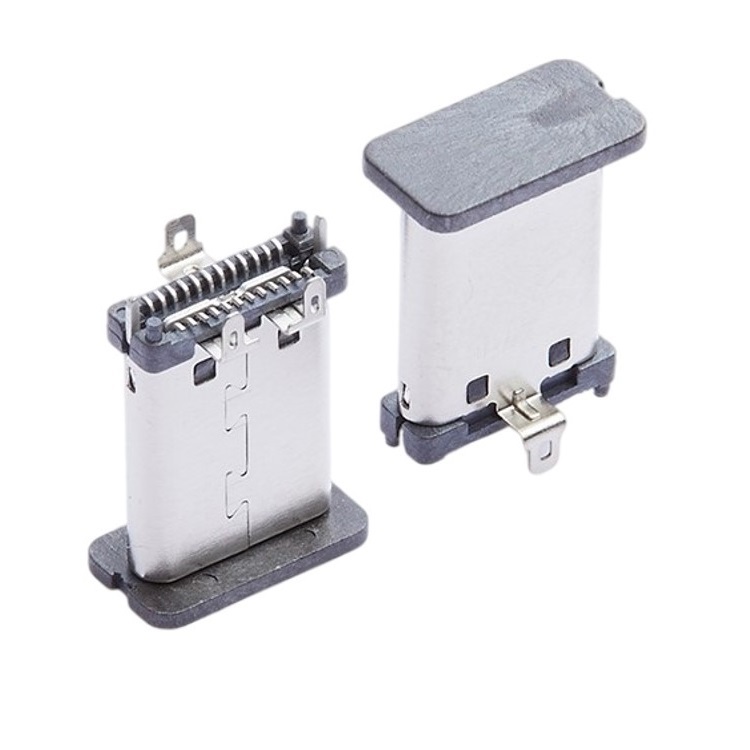

Product name: Type C USB Jack connector Type c connector

Technical parameters of USB Type C female seat:

1. Rated load: DC 30V 60V 1A 3A

2. Contact resistance: ≤50mΩ

3. Insulation resistance: ≥100mΩ DC250V

4. Soldering resistance temperature: 250℃＋5℃

5. Operating humidity: ≤85%RH

6. Plug life: 10,000 Cycles

7. Insertion and extraction force: 2-20N

8. Brand  KOSOD  KSDKG
