SS-22D10

产品详情

请点击此网站上的“联系我们”联系销售人员
请点击此网站上的“联系我们”联系销售人员



立式拨动开关正拨技术指标

1. 额定负荷: DC 12V30V  0.3A  0.5A

2. 接触阻抗: 50mΩ

3. 绝缘阻抗: 100mΩ DC500V

4. 耐焊温度: 250±5°5s

5. 使用寿命: 10,000cycles

6. 使用温度: -25 to 80

7. 使用湿度: 85% RH

8. 操作力 : 160gf180gf 260gf  可定制

9.手柄长度:2MM-10MM      可定制

应用:汽车电器、工控设备、数码产品、安防、电脑、通讯产品、家用电器、智能交通等。

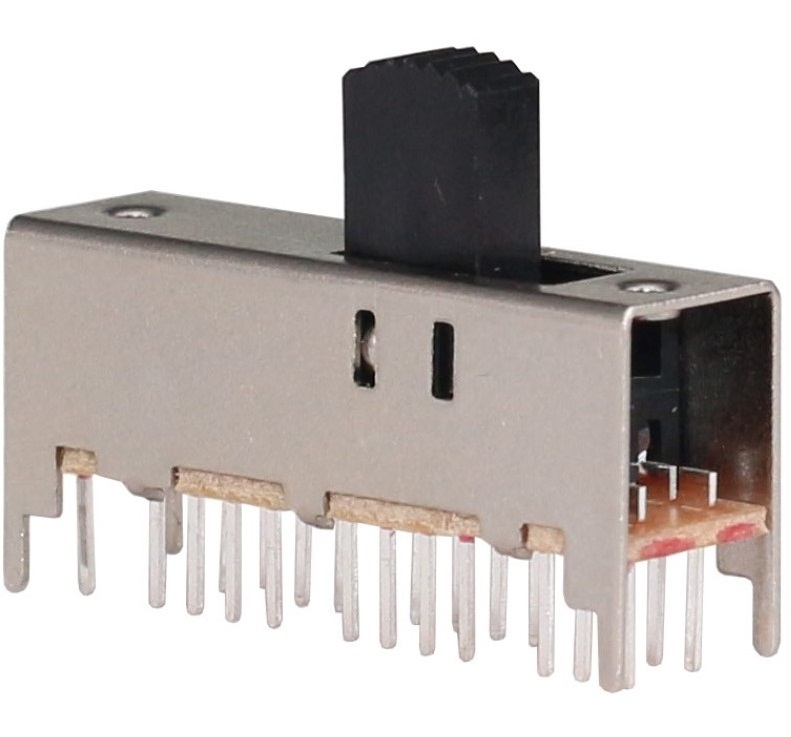

Verticaltoggle switch side dial/ Vertical slide switch technical indicators

1.Rated load: DC 12V 30V 0.3A 0.5A

2.Contact impedance: 50mΩ

3.Insulation resistance: 100mΩ DC500V

4.Soldering resistance temperature: 250±5°5s

5.Service life: 10,000 cycles

6.Operating temperature: -25 to 80

7.Operating humidity: 85% RH

8.Operating force: 160gf 180gf 260gf can be customized

9.Handle length: 2MM-10MM can be customized

Application:automotive electrical appliances, industrial control equipment, digitalproducts, security, computers, communication products, household appliances,intelligent transportation, etc.
