立式拨动开关正拨技术指标
1. 额定负荷: DC 12V30V 0.3A 0.5A
2. 接触阻抗: ≤50mΩ
3. 绝缘阻抗: ≥100mΩ DC500V
4. 耐焊温度: 250±5°5s
5. 使用寿命: 10,000cycles
6. 使用温度: -25 ℃ to 80 ℃
7. 使用湿度: ≤85% RH
8. 操作力 : 160gf180gf 260gf 可定制
9.手柄长度:2MM-10MM 可定制
应用:汽车电器、工控设备、数码产品、安防、电脑、通讯产品、家用电器、智能交通等。

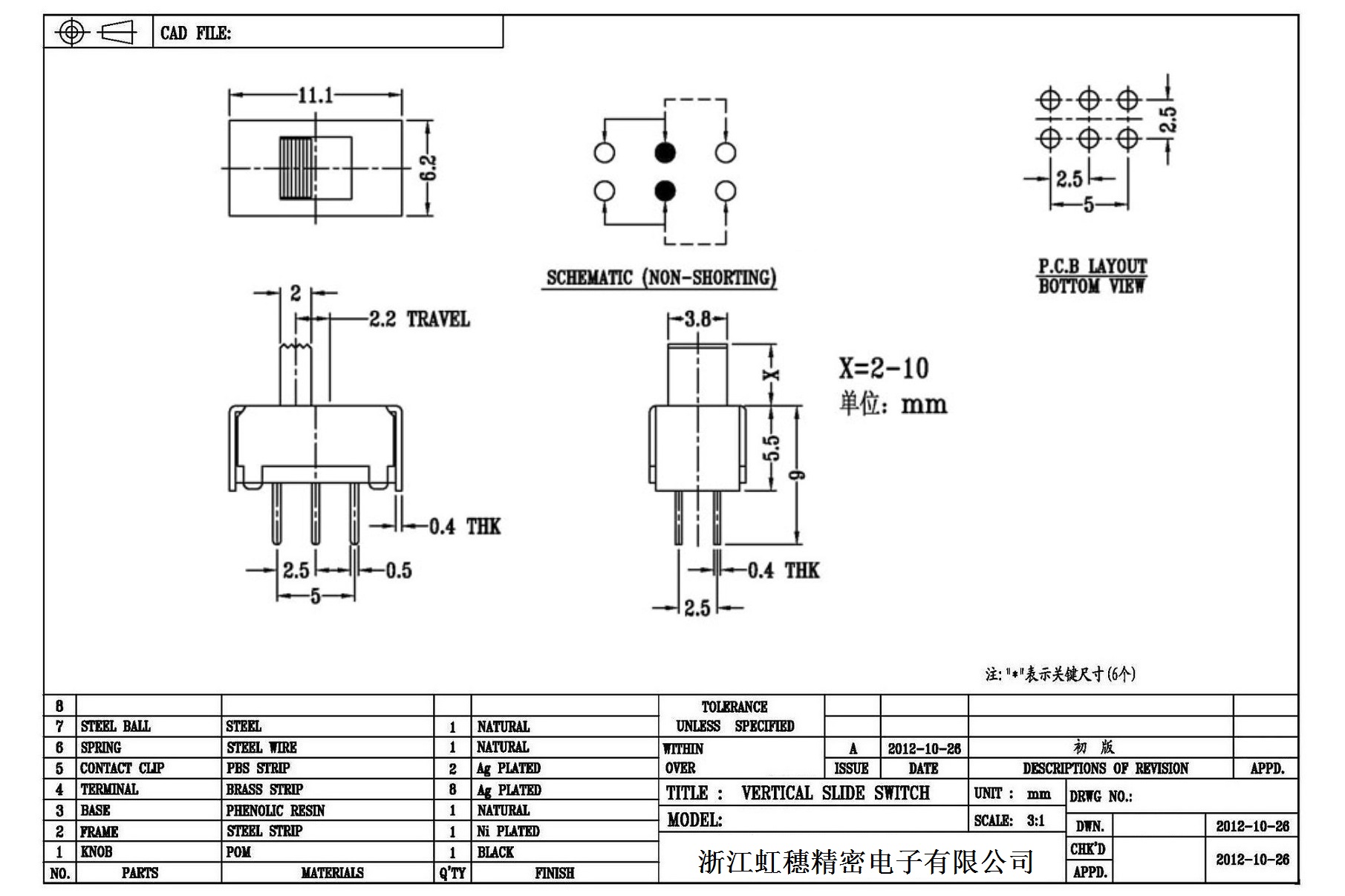

Verticaltoggle switch side dial/ Vertical slide switch technical indicators
1.Rated load: DC 12V 30V 0.3A 0.5A
2.Contact impedance: ≤50mΩ
3.Insulation resistance: ≥100mΩ DC500V
4.Soldering resistance temperature: 250±5°5s
5.Service life: 10,000 cycles
6.Operating temperature: -25 ℃ to 80 ℃
7.Operating humidity: ≤85% RH
8.Operating force: 160gf 180gf 260gf can be customized
9.Handle length: 2MM-10MM can be customized
Application:automotive electrical appliances, industrial control equipment, digitalproducts, security, computers, communication products, household appliances,intelligent transportation, etc.
